Customized Offshore Frame
Production of a custom-designed 20ft Offshore frame featuring dismountable design for seamless offshore machinery integration
In a bespoke engineering feat, Box2Build has successfully delivered an innovative solution to the offshore industry with its custom-designed 20ft HC Offshore frames, developed to accommodate specific offshore machinery. These frames, engineered with precision, are designed and tested in compliance with the stringent DNV 2.7-1 standard, ensuring they withstand the challenging offshore environment while prioritizing safety in operations.
Understanding the critical importance of compatibility, the design process centered around the client's machinery connection points. This meticulous approach ensured a perfect fit within the frames, with tolerances carefully managed to facilitate seamless integration of the machinery. This customization exemplifies Box2Build's commitment to tailored solutions that meet the exact needs of our clients.
The frames underwent rigorous testing, including a demanding drop test, to validate their resilience and safety. Moreover, their innovative dismountable design allowed for exceptional flexibility; the client could effortlessly install large machinery onto the base before reassembling the top of the frame. This design ingenuity did not compromise the payload capacity, thanks to the strategic use of Finite Element Method calculations to optimize the frame's structure.

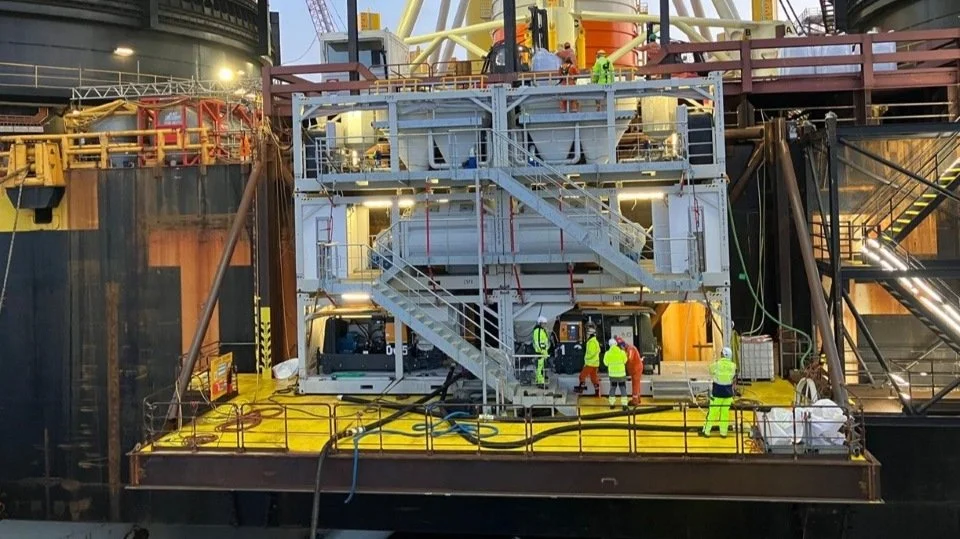

This project culminated in the creation of a unified offshore machine park, with the interconnected frames hosting the installed machinery. This achievement stands as a testament to Box2Build's engineering prowess, ability to deliver custom solutions, and commitment to advancing the capabilities of offshore operations through smart, safe, and sustainable design.
20ft HC offshore dismountable frame designed and produced, equipped with tarps for weather protection
